LUMA

Designed for durability and ease of installation, the sleek external design prevents build-up of dust or potentially damaging airborne material on the fitting.

规格参数


功率范围

20-100W


光效

120-160lm/W


产品特征

Photocell/Motion Sensor/DALI/D4i/1-10V dimming


认证

IP67 UL/ CUL/ DLC/ LM79 / CB/ CE/ ENEC/ RoHS/ IK08


适用场所

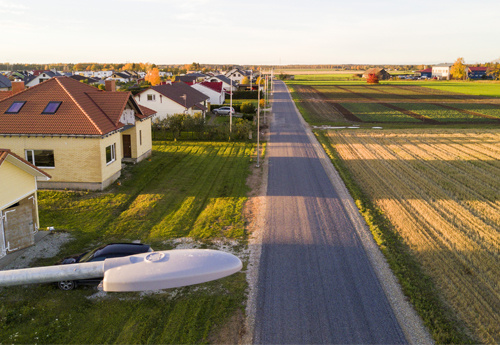

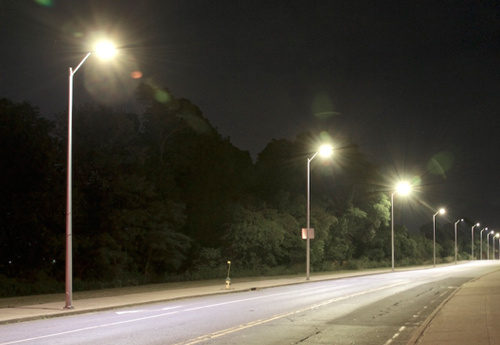

Street/Area lighting

产品详细

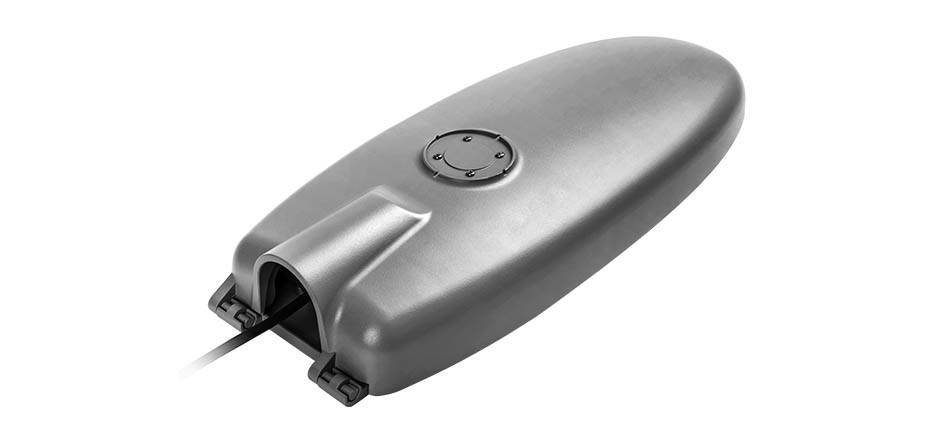

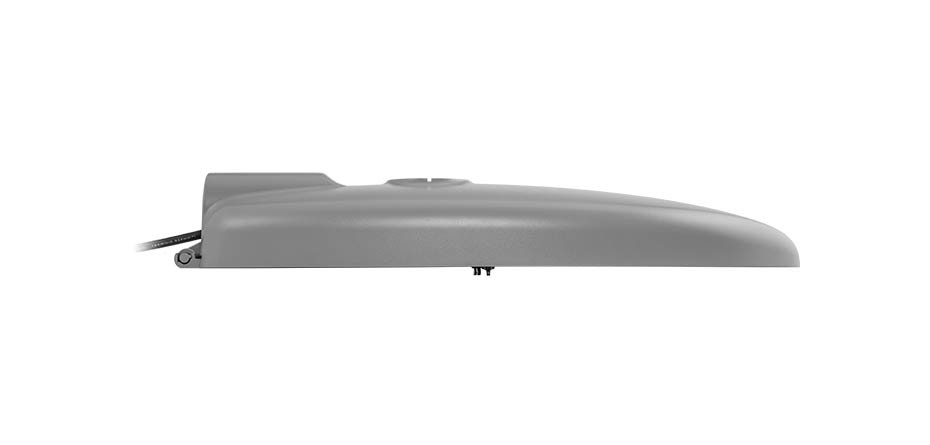

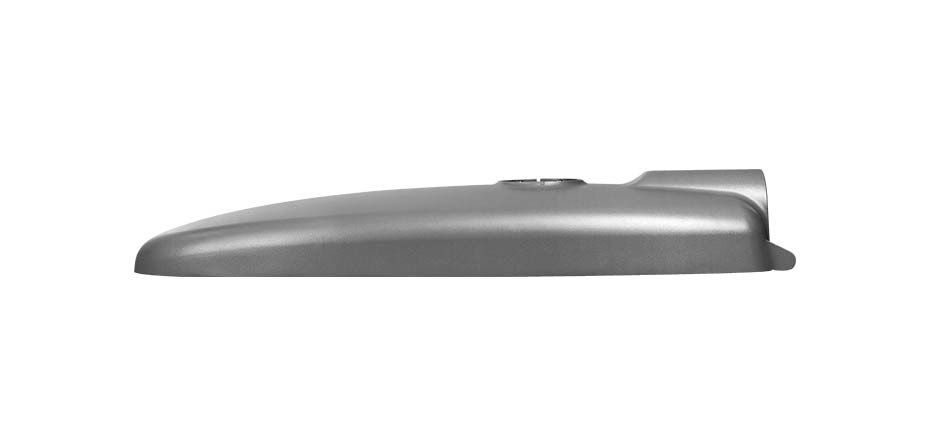

01.HOUSING
Single-cast aluminum housing enables passive heat dissipation along the entire length of the luminaire.
Modular design allows for easy installation, replacement and maintenance.
Tool-less entry to driver compartment.
IK08 rated.
Meets 3G vibration per ANSI C136.31-2010.
02.FINISH
Corrosion resistant polyester powder painted 100μm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Standard colors: Grey, Black, Bronze and White.
Customized colors are available.
03.LED & OPTICAL ASSEMBLY
Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the LEDs from voltage transients induced by lightning and other transient voltage events.
High-uniformity LED optics are constructed of durable optical polycarbonate that is impact and UV resistant.
The metal plate provides double protection for the LED light engine and prolongs LED optics life.
Multiple optical lenses are available.
Each LED module are 100% tested prior to assembly which is IP67 rated.

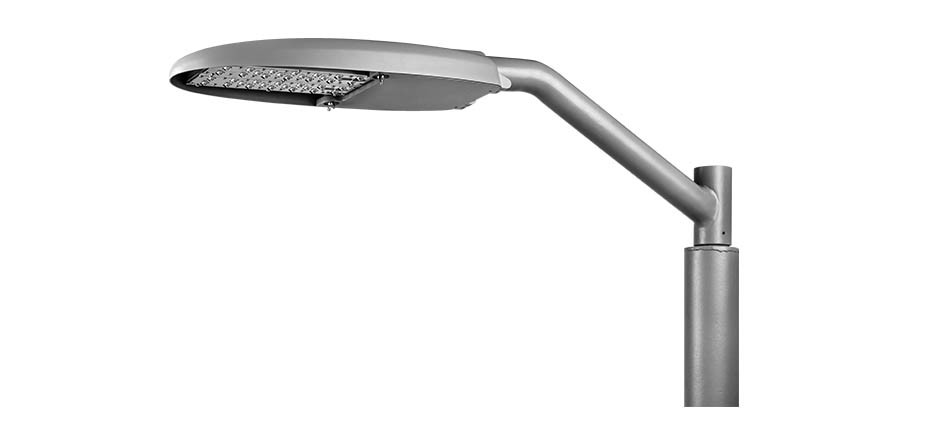

04.MOUNTING
Side-entry mounting.
Adjustable for 1 5/8-2 3/8"(42mm-60mm) O.D. tenon.
Brackets are available for different installations.
05.Electrical/ Key Components/ Controls
120-277VAC and 12-24VDC available.
Surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002 available.
High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
Multiple smart lighting control options are available, e.g. photocell, motion sensor, DALI, 1-10V.
3-pin/ 5-pin/ 7-pin photocell are available for light level adjustments.
