SHINE-D

SHIND-D is an ideal solution for surface mount installations with modular and a low-profile design delivering high-efficacy lighting.

规格参数


功率范围

120/160W


光效

120-160lm/W


产品特征

Photocell/Motion Sensor/1-10V dimming


认证

IP20 /UL/ CUL/ DLC/ LM79/ CB/ CE/ SAA/ RoHS


适用场所

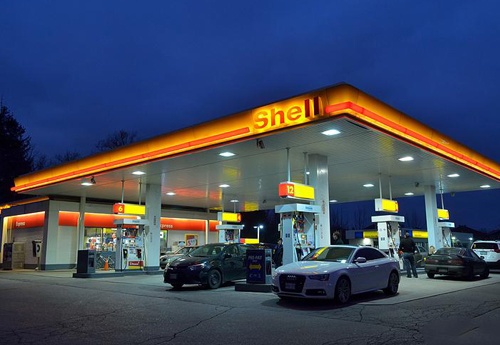

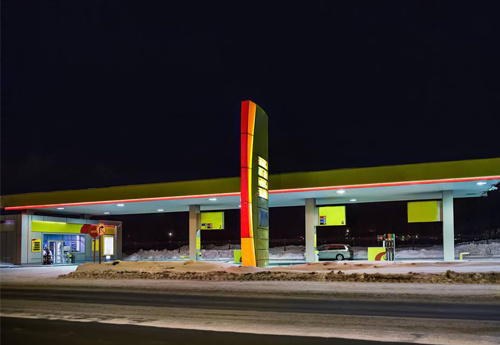

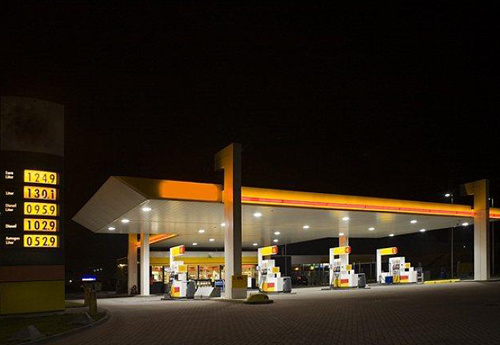

Gas station/Tollgate/Platform/Factory/Warehouse

产品详细


01.HOUSING
Die cast aluminum housing.
Traditional box styling, simple style.
Modular design allows for easy installation, replacement and maintenance.
02.FINISH
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Corrosion resistant polyester powder painted 100μm thickness.
Standard color of White.

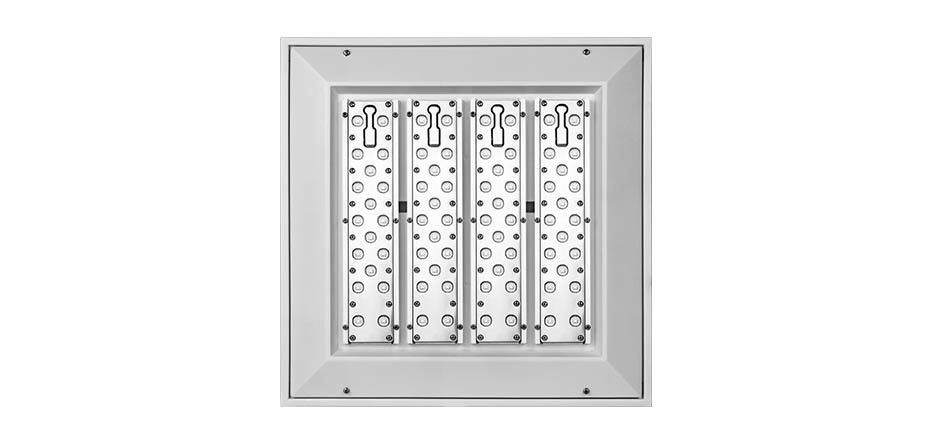

03.LED & OPTICAL ASSEMBLY
Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the LEDs from voltage transients induced by lightning and other transient voltage events.
High-uniformity LED optics are constructed of durable optical polycarbonate that is impact and UV resistant.
The metal plate provides double protection for the LED light engine and prolongs LED optics life.
Over 20- optical lenses are available for virtually any application.
Each LED module are 100% tested prior to assembly which is IP67 rated.

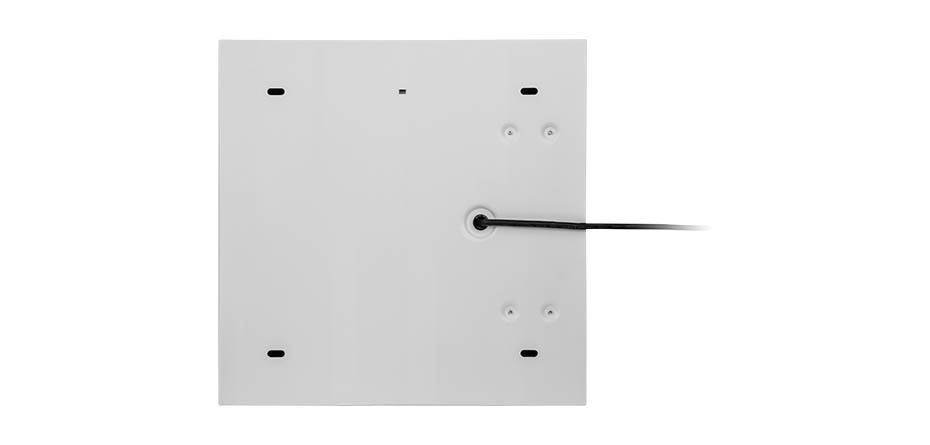

04.MOUNTING
Surface mount.
Used for the traditional place like parking lot and so on.
05.Electrical/ Key Components/ Controls

Surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002 available.
High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
120-277VAC and 347-480VAC available.
Multiple lighting control options are available, e.g. 1-10V.

  • 关键词:
    • Economy highbay
    • High-efficacy and high-outputlights High bay lights\LED canopy lights
    • canopy light fixture
    • canopy lights outdoor Recessed LED canopy lights
    • Security lighting
    • canopy lighting design LED canopy lights surface mount canopy lights

文件下载


  • pdf
    SHINE SERIES.pdf
    SHINE SERIES.pdf
  • SHINE Series IES File.zip
