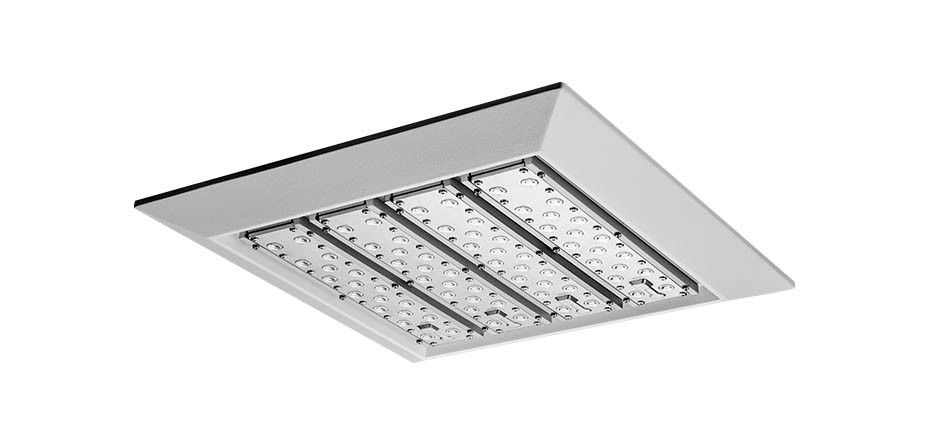

SHINE-E

The SHINE Series, featuring its patented,innovative installation and flush-mount design,is perfectly suitable for gas station lighting or other applicable mounting.

规格参数


功率范围

120/160W


光效

120-160lm/W


产品特征

Photocell/Motion Sensor/DALI/LORA/PLC/D4i/1-10V dimming


认证

IP67/ UL/ CUL/ DLC/ LM79/ CB/ CE/ RoHS/ IK08


适用场所

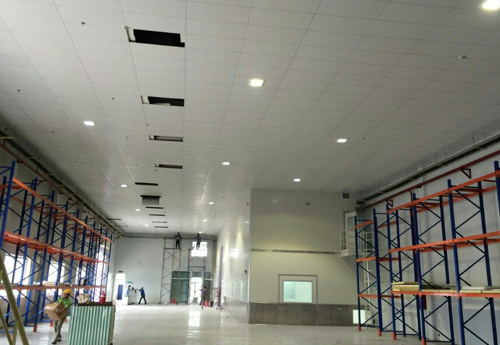

Gas station/Tollgate/Platform/Factory/Warehouse

产品详细

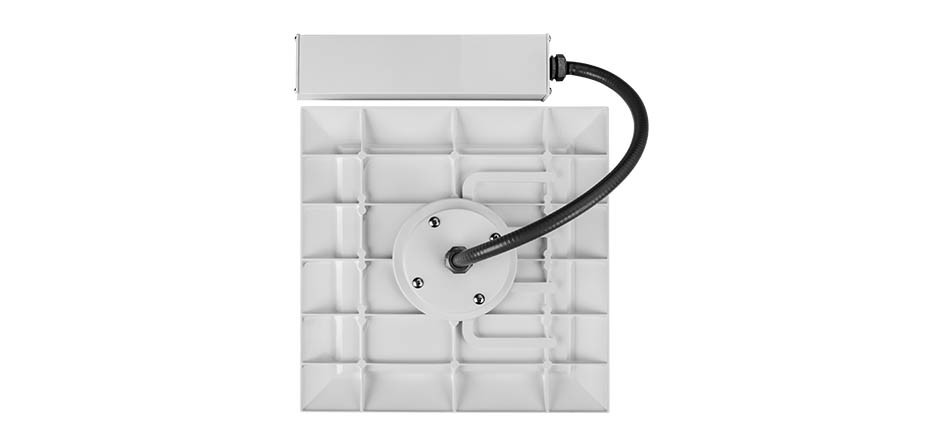

01.HOUSING
Die cast aluminum housing.
Slim appearance with 25mm thickness.
Modular design allows for easy installation, replacement and maintenance.
02.FINISH
Corrosion resistant polyester powder painted 100μm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Standard color of White.

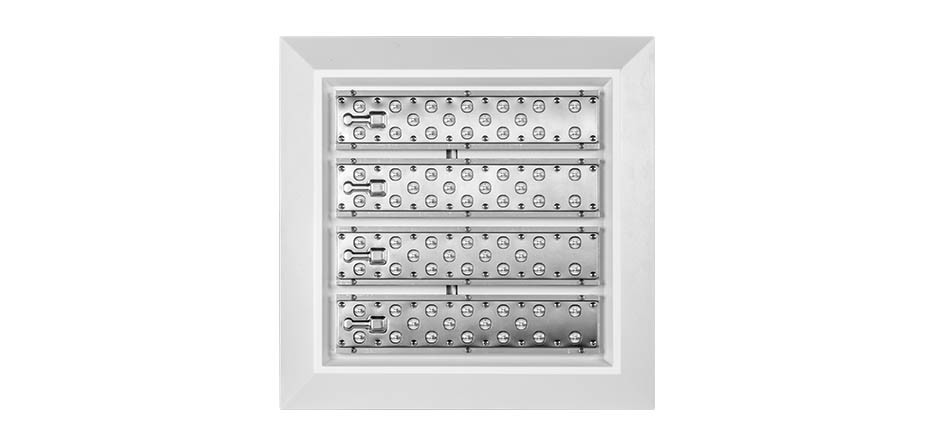

03.LED & OPTICAL ASSEMBLY
Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the LEDs from voltage transients induced by lightning and other transient voltage events.
High-uniformity LED optics are constructed of durable optical polycarbonate that is impact and UV resistant.
The metal plate provides double protection for the LED light engine and prolongs LED optics life.
Over 20 optical lenses are available for virtually any application.
Each LED module are 100% tested prior to assembly which is IP67 rated.

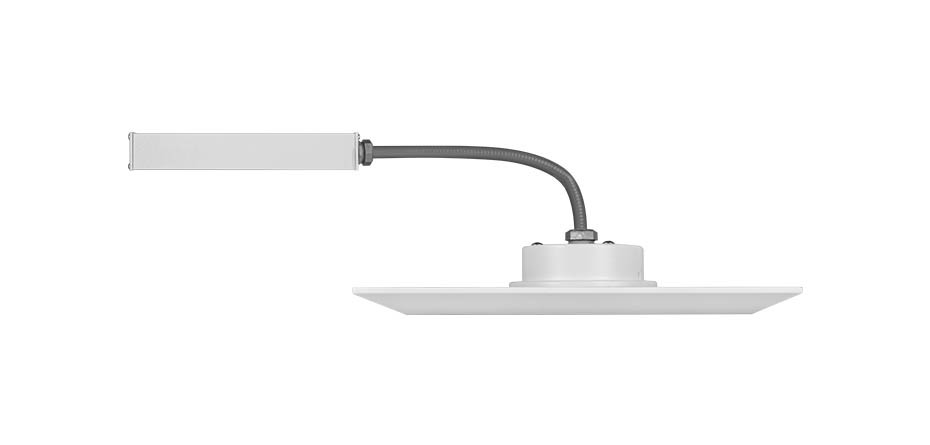

04.MOUNTING
Flush mount with cut-out hole of Φ127mm.

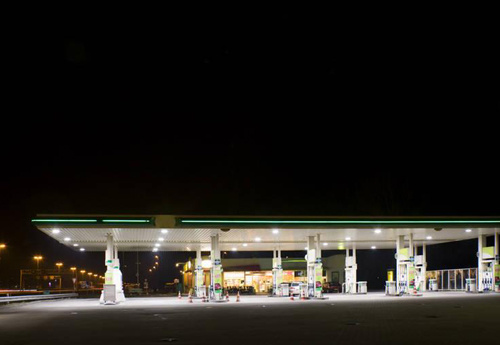

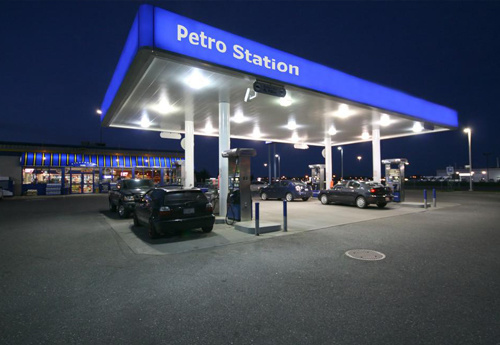

Ideal for gas station lighting application.
05.Electrical/ Key Components/ Controls
120-277VAC and 347-480VAC available.
Surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002 available.
High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
Multiple lighting control options are available, e.g. DALI, 1-10V.

  • 关键词:
    • CANOPY LIGHT
    • Economy highbay
    • High-efficacy and high-outputlights
    • High bay lights
    • LED canopy lights
    • canopy light fixture
    • canopy lights outdoor Recessed LED canopy lights
    • Security lighting
    • canopy lighting design LED canopy lights surface mount canopy lights
    • Canopy light fixture parts Canopy LED light fixture
    • Outdoor LED canopy lighting

文件下载


  • pdf
    SHINE SERIES.pdf
    SHINE SERIES.pdf
  • SHINE Series IES File.zip
