GAMA-W

Providing unmatched illumination performance and energy efficiency, the GAMA-W series is a compact yet easy-to-install product with a robust operational life.

规格参数


功率范围

30-160W


光效

120-160lm/W


产品特征

Photocell/Motion Sensor/IR/Sensor/Emergency/1-10V dimming


认证

IP65/UL/CUL/DLC/LM79/SAA/ENEC/CB/CE/ErP/RoHS/IK10


适用场所

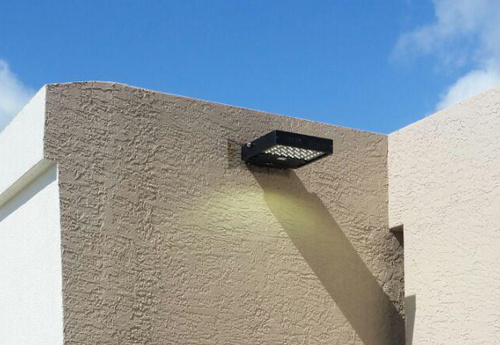

General area lighting/Security lighting

产品详细

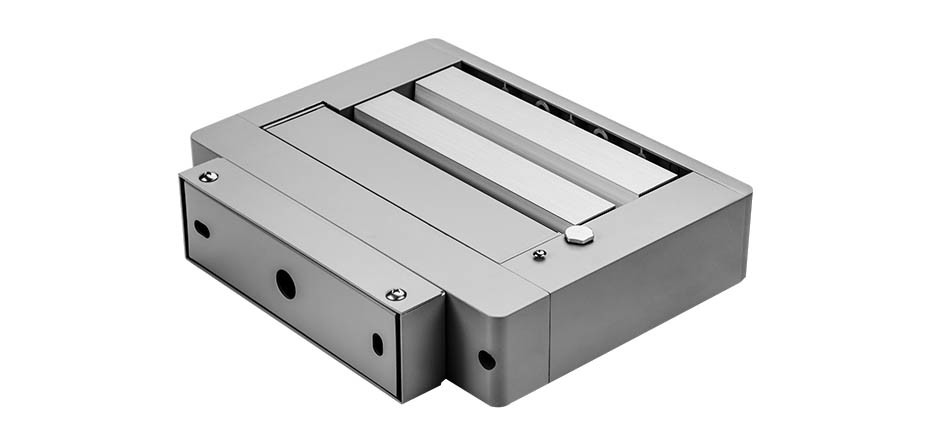

01.HOUSING
Die cast aluminum housing.
Modular design allows for easy installation, replacement and maintenance. This
design also creates a chimney effect which provides exceptional thermal management.
IK10 rated.
02.FINISH
Corrosion resistant polyester powder painted 100μm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Standard colors: Grey, Black, Bronze and White.
Customized colors are available.

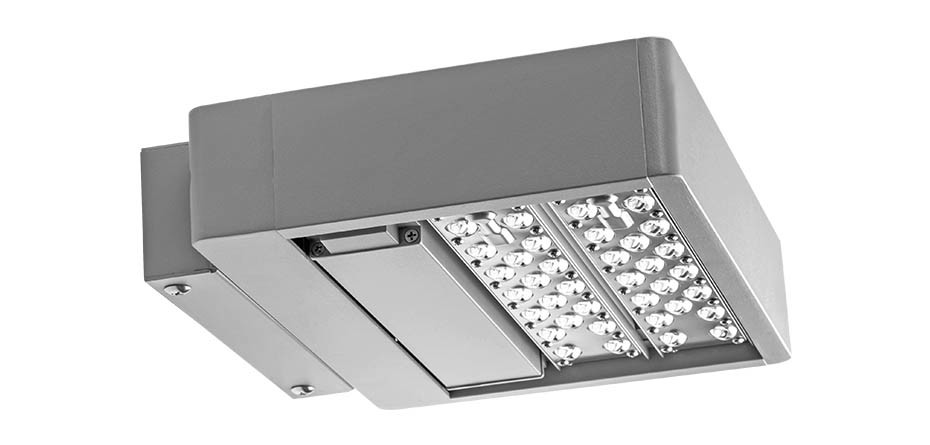

03.LED & OPTICAL ASSEMBLY
Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the LEDs from voltage transients induced by lightning and other transient voltage events.
High-uniformity LED optics are constructed of durable optical polycarbonate that is impact and UV resistant.
The metal plate provides double protection for the LED light engine and prolongs LED optics life.
Over 20 optical lenses are available for virtually any application.
Each LED module are 100% tested prior to assembly which is IP67 rated.
04.MOUNTING
Wall pack.
Brackets are available for different installations.
Interchangeable with the other GAMA Series with a bracket change.
05.Electrical/ Key Components/ Controls
Surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002 available.
Multiple lighting control options are available, e.g. DALI, 1-10V, Photocell.
120-277VAC and 347-480VAC available.
High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.

  • 关键词:
    • General area lighting
    • Security lighting
    • Ideal for landscape lighting
    • Entrance lightingLED wall lights
    • Solar wall lights\Modern LED Wallpack
    • LED Wall Pack\Guard Pack
    • LED wall washers
    • LED wall pack lights
    • Outdoor wall lights
    • Industrial lighting

文件下载


  • pdf
    GAMA-L&T&W.pdf
    GAMA-L&T&W.pdf
  • GAMA Series IES File.zip

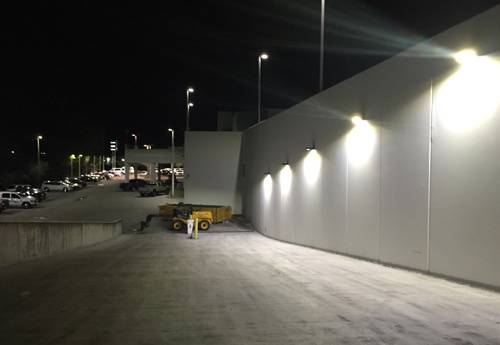

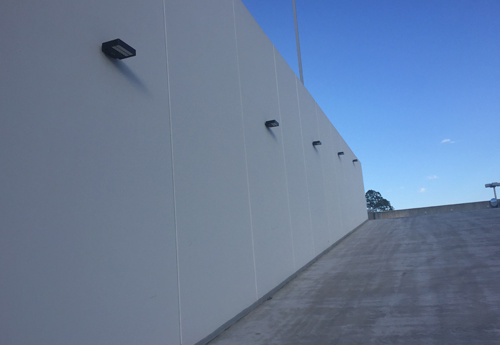

应用案例
